ZLD-SP-4MG can be optionally configured with multiple chambers, including one load-lock chamber and multiple sputtering chambers. It is the cutting edge vacuum system for novel materials. It supports Magnetron Sputtering for ITO Film and Seed Layer Based Process.
Product Description

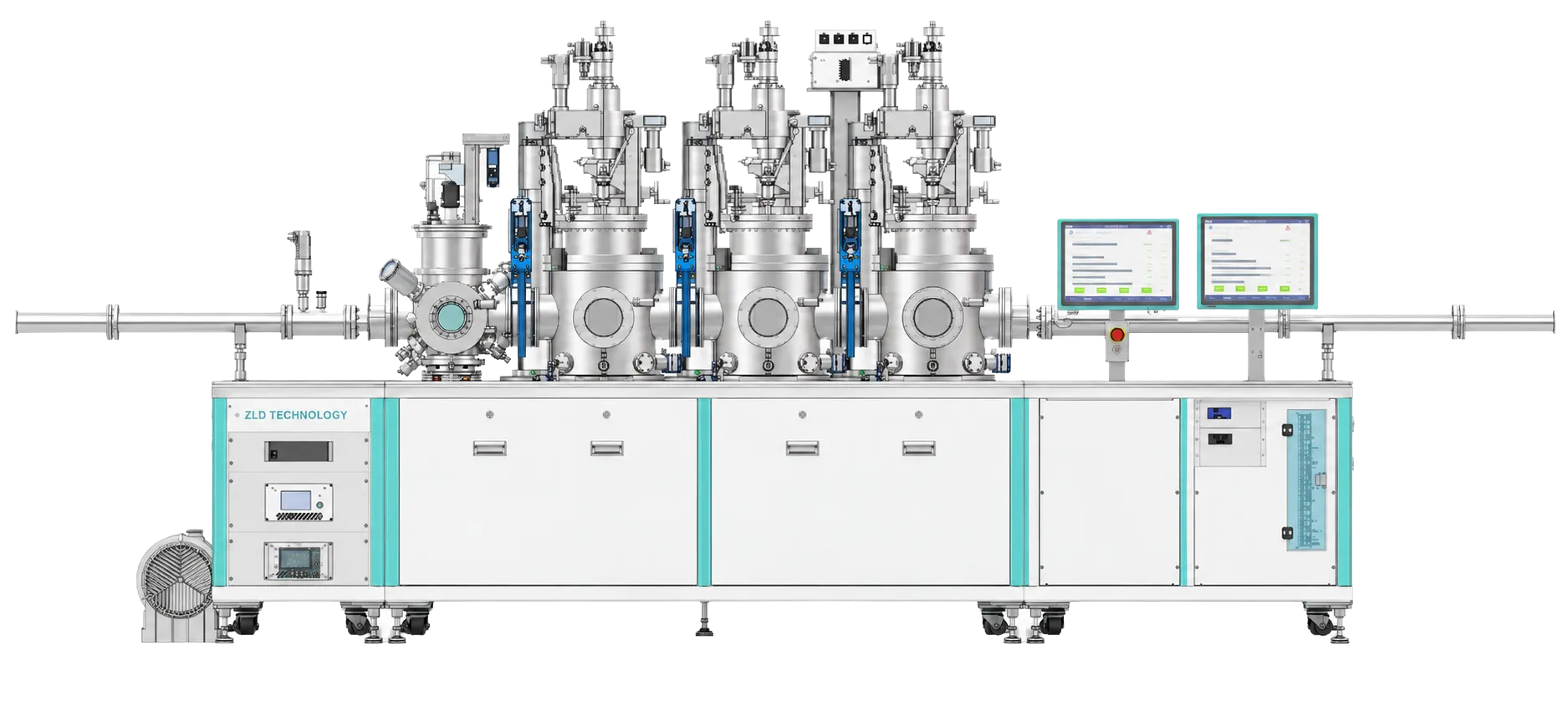

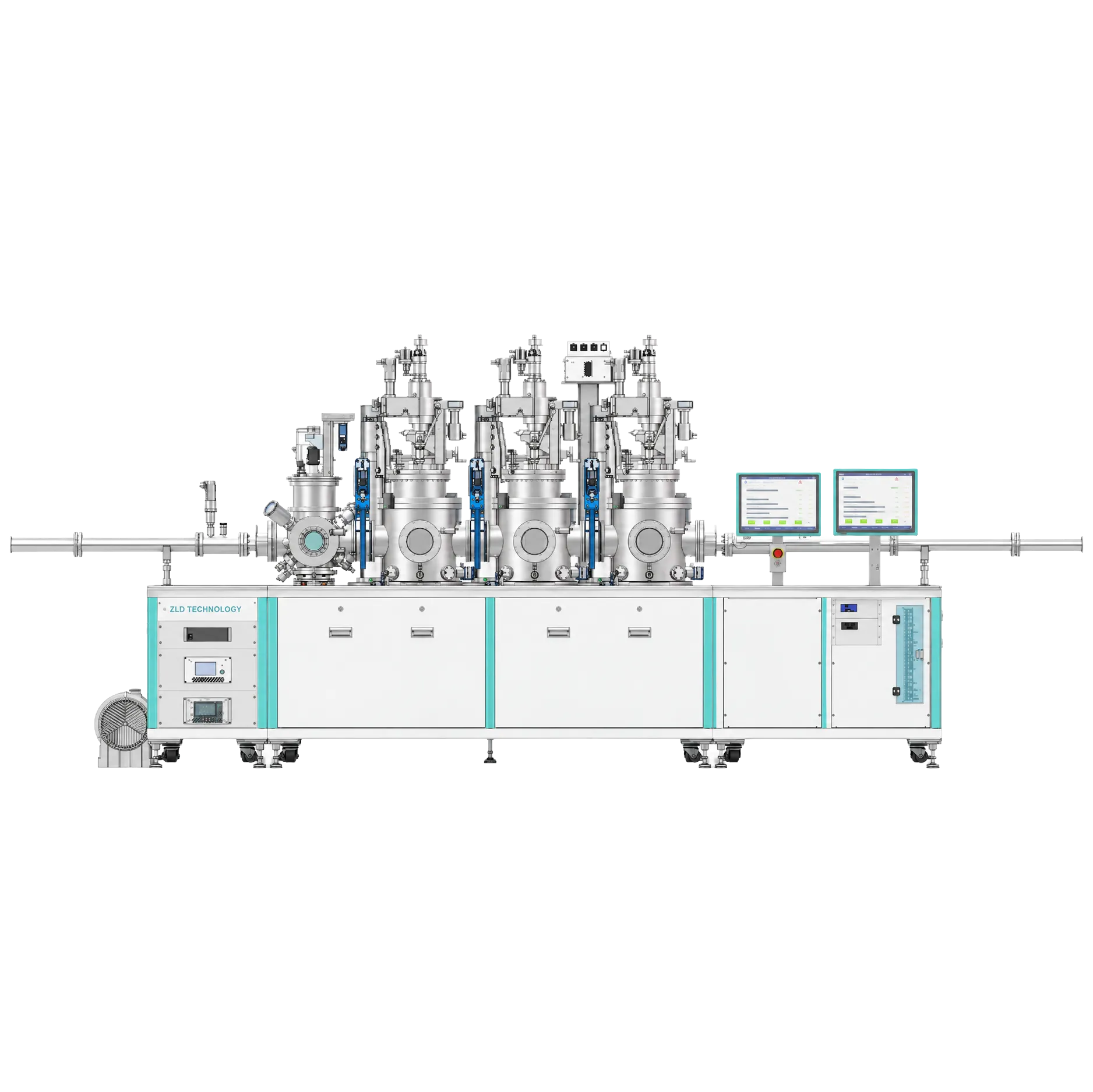

ZLD-SP-4MG Multi-Chamber UHV Magnetron Sputter system from ZLD Technology is engineered for high-precision thin film deposition in ultra-clean environments. With capabilities including processing temperatures up to 900°C and ultimate pressures as low as ≤3E-9 Torr, this system is ideal for applications in optics, semiconductors, and superconducting materials. Its advanced features ensure uniform film quality and reproducibility, making it a reliable choice for cutting-edge research and development. The system can be optionally configured with multiple chambers, including one load-lock chamber and multiple sputtering chambers. It is the cutting edge vacuum system for novel materials. It supports Magnetron Sputtering for ITO Film and Seed Layer Based Process.
1. The system includes one load-lock chamber and multiple sputtering chambers.
2. Load-lock chamber is equipped with ion milling, RF plasma cleaning, gas passivation.
3. Equipped with fully automatic operation interface.
Ion Bombardment: Plasma ions accelerate toward a target, dislodging atoms by momentum transfer.
Magnetic Confinement: Magnetic fields trap electrons near the target, increasing plasma density and reducing ionization losses.
Reactive Sputtering: Introduction of reactive gases (e.g., O₂, N₂) allows for compound film deposition (oxides, nitrides).
Thermal Efficiency: The target remains relatively cool, which supports deposition of high-melting-point materials without excessive heating.
The system supports multiple UHV sputtering chambers plus a load-lock chamber for efficient sample loading.
Base pressure can reach ≤ 3E-9 Torr, enabling ultra-clean film growth.
Process temperature range spans from room temperature up to 900 °C, enabling thermal processing or elevated-temperature depositions.
Modular chamber architecture supports multi-layer structures, such as Nb/Al-AlOx/Nb, Al/AlOx/Al, or even α-Ta/TaOx/α-Ta junctions.
Wafer Transfer: Highly reliable and repeatable substrate transferring capability
Fully automated control interface enables precise management of process parameters.
Real-time monitoring (e.g., thickness, rate) can be implemented via in-situ tools.
Specification
| Sample Size | Max 6 inch Wafer and smaller chips compatible |
| Magnetron Cathode | 4-6 inch Ultra High Vacuum Magnetron Cathode |
| Power Supply | DC or RF power supply，wafer and target space can change continoulsly |
| Ultimate Pressure | ≤3E-9 Torr |
| Process Temperature | 0-900°C |
| Uniformity | Sheet Resistance Uniformity 1 Sigma NU%<±5% (4 inch wafer with 5 mm removal from the edge) |
| Source Flexibility | Different sputtering sources and reactive gas feed, allowing customization of material composition |
Application
1. Optics
2. Semiconductors
3. Metallic materials
4. Alloy materials
5. Superconducting materials
Related FAQs
RELATED PRODUCTS
ZLD-SP-4MG Multi-Chamber UHV Magnetron Sputter
ZLD-SP-4MG can be optionally configured with multiple chambers, including one load-lock chamber and multiple sputtering chambers. It is the cutting edge vacuum system for novel materials. It supports Magnetron Sputtering for ITO Film and Seed Layer Based Process.
Learn More
ZLD-IP-500 Industrial Powder ALD
The ZLD-IP-500 Industrial Powder ALD System brings atomic-level precision coating to 500 kg-scale mass production. Its exceptional uniformity (1σ < 3%) and patented sealing technology provide dependable surface functionalization solutions for lithium battery materials, catalysts, and metal powders—directly enhancing product consistency, service life, and performance. It is the ultimate platform for achieving high-performance powder materials.
Learn More
ZLD-ALD-12CL 8"/12" ALD Cluster System
ZLD-ALD-12CL balances both R&D and volume production requirements. It fully retains its mature and stable process performance, supports both thermal and plasma-enhanced (PE) modes, and consistently maintains its core advantage of low-oxygen thin-film deposition.
Learn More
ZLD-TB-3 Thermal Batch ALD (Multi-Chamber)
ZLD Technology’s ZLD-TB-3 Thermal Batch ALD (Multi-Chamber)) system leverages advanced Thermal Atomic Layer Deposition technology to deliver high-precision thin film deposition for industrial applications.It is a dedicated themal ALD designed for 4/6-inch LED manufacturing lines, comprising process chamber, motion control system and load/unload platform.
Learn More
ZLD-SiC-8 SiC Epitaxy CVD is purpose-built to satisfy the next-generation power electronics and rail transit demand for premium SiC epitaxial layers. Its innovative hot-wall induction heating and multi-gas mixing system ensures highly uniform epitaxy and exceptional doping control while remaining compatible with 6- and 8-inch wafers. Engineered for high output, this system significantly enhances throughput and reduces total cost of ownership, making it an ideal core platform for third-generation semiconductor manufacturing.
Learn More
ZLD-DT-6 is the world's smallest Atomic Layer Deposition equipment for university, laboratory, which can realize controllable atomic layer deposition on 4/6-inch wafers and micro and nanopowders in high uniformity. It is the the best solution to research and application of advanced energy materials and new nanomaterials.
Learn More
ZLD-PB-300E Plasma Batch ALD (EFEM)
ZLD-PB-300E Plasma Batch ALD (EFEM) enables low-temperature, high-quality PEALD processing, allowing premium optical films—such as SiO2, Al2O3, and TiO2—to be deposited onto temperature-sensitive substrates. It can also grow a variety of ALD films on bases made of glass, silicon wafers, ceramics, organic materials, polymers, metals, and other materials.
Learn More
ZLD-DC-4 Diamond Microwave Plasma CVD
ZLD-DC-4 Diamond Microwave Plasma CVD systems are core equipment for advancing fourth-generation wide-bandgap semiconductors, committed to achieving extreme growth of high-quality single-crystal and polycrystalline diamond films. Purpose-built to overcome thermal management bottlenecks in high-power chips, this system delivers an ultimate heat-sink solution for next-generation high-frequency, high-power devices while enabling frontier exploration of diamond semiconductor materials.
Learn More
—Material fabrication：
Niobium, Niobium Nitride, Tantalum, Aluminum, Alloy metal, ITO film
—Multilayer structure fabrication：
1. Nb/Al-AlOx/Nb, Al/AlOx/Al, or even α-Ta/TaOx/α-Ta junctions
2. Compatible with Seed Layer Based Process
